Ultrasonic P device

To perform ultrasonic cutting or welding on plastic or textile

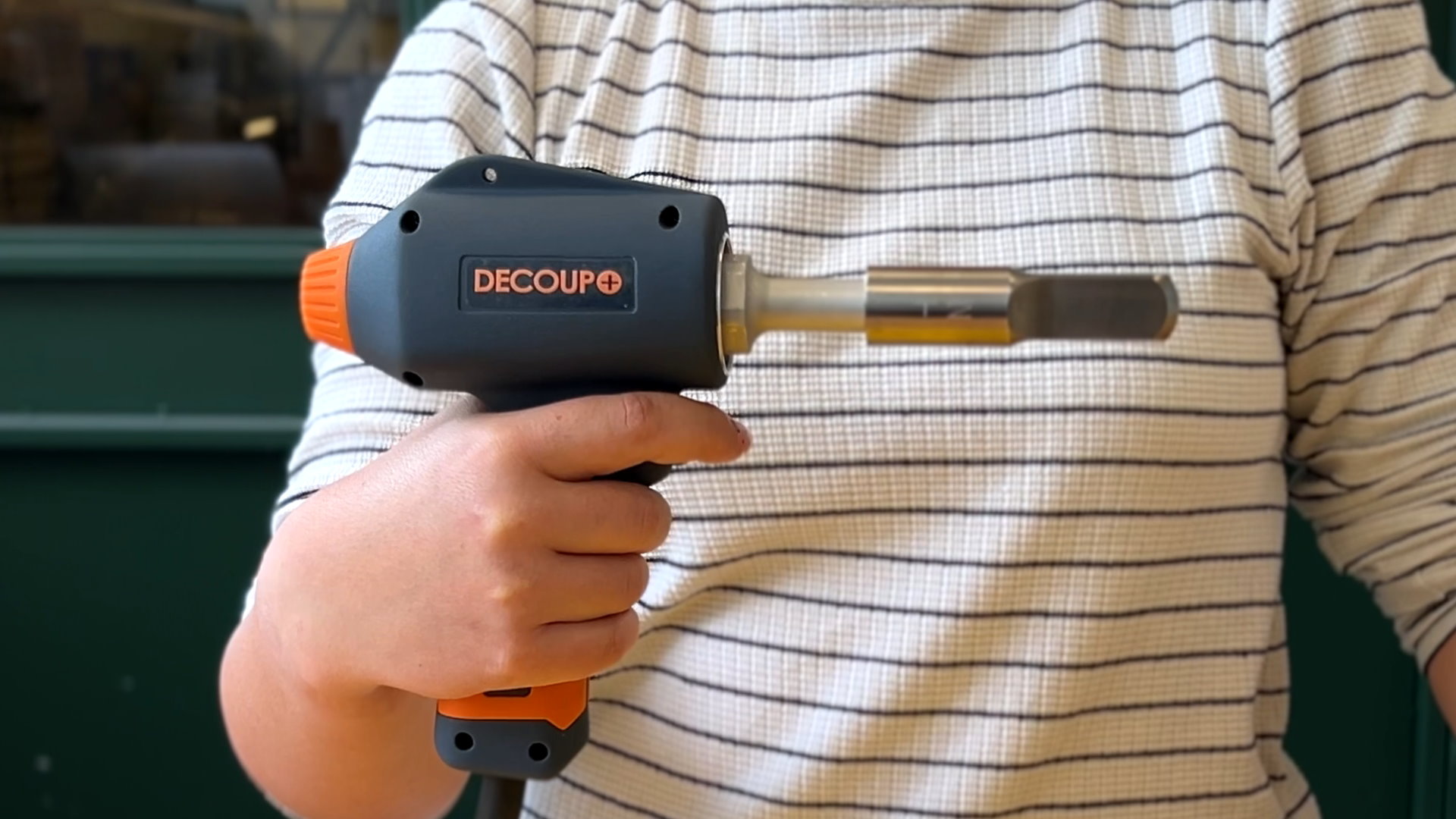

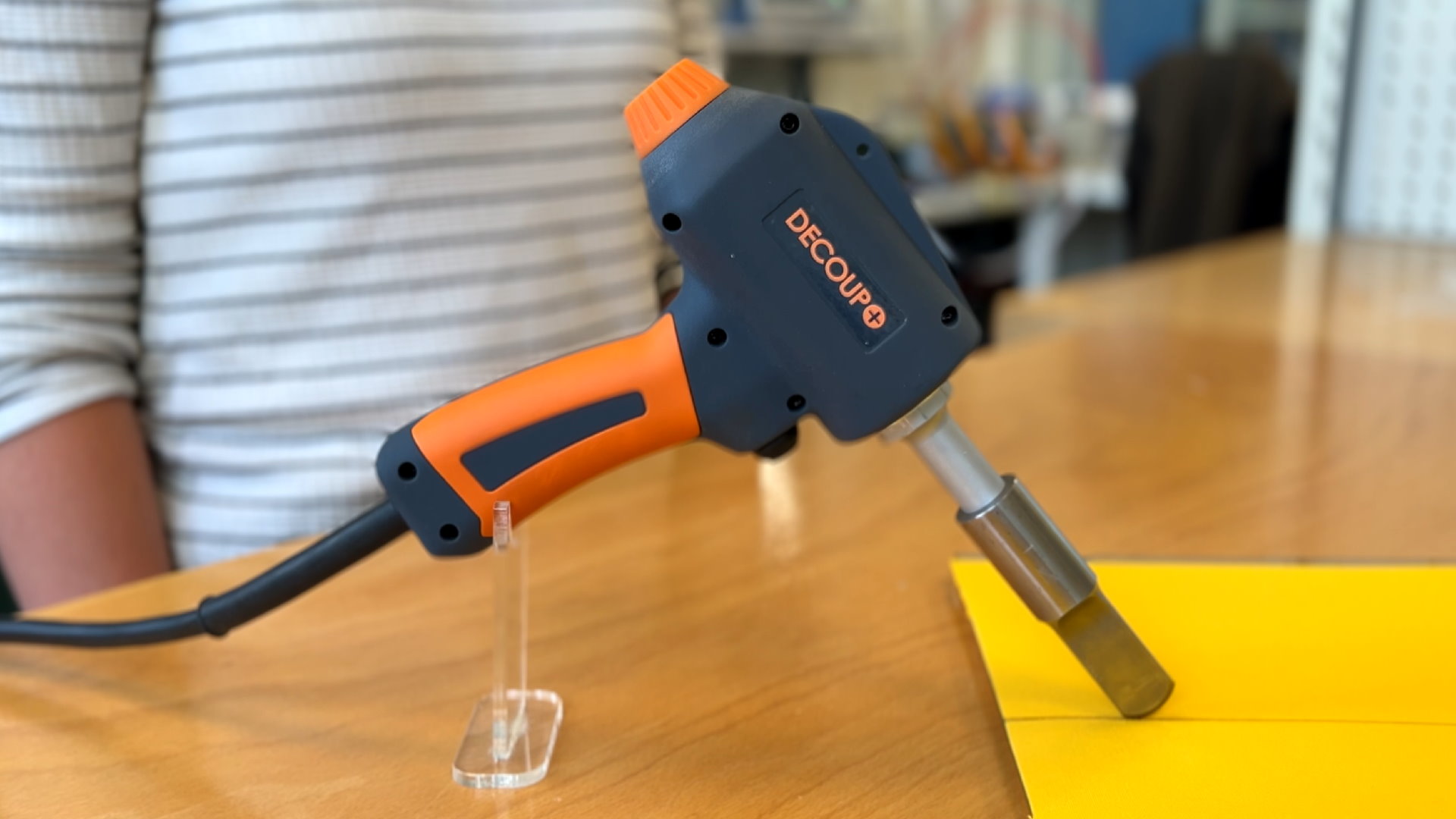

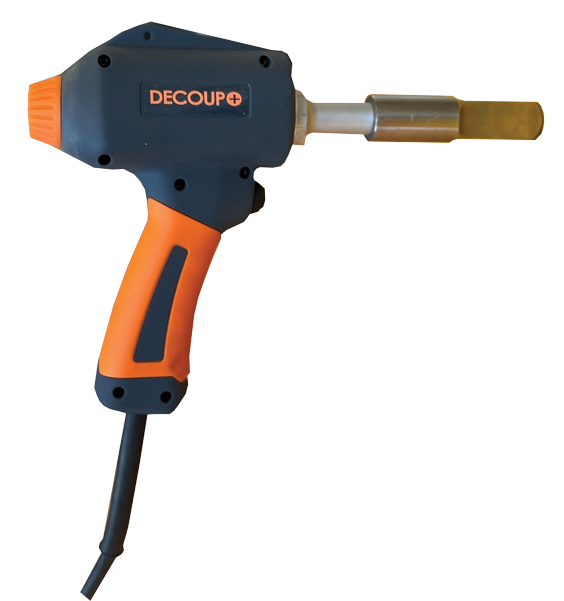

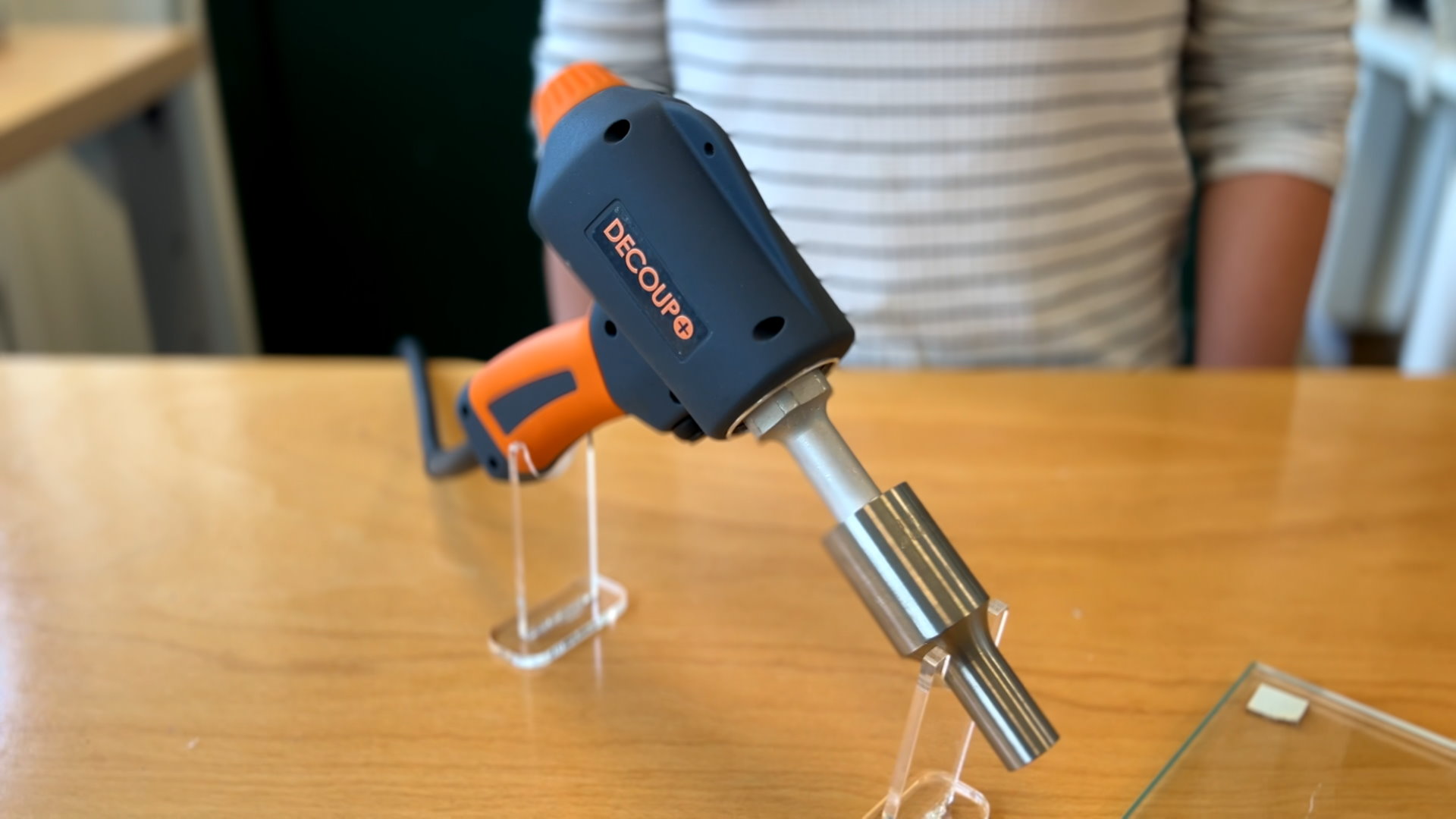

Our ultrasonic gun or pistol P 300 W is an handheld device compact, light and flexible. Thanks to an easy sonotrode (also called horn) replacement, perform different operations with the same device. Indeed, depending on the tool used, you will perform safety ultrasonic weldings. We also propose other tools, to perform cutting operations. So, our range of various tools are mainly used for :

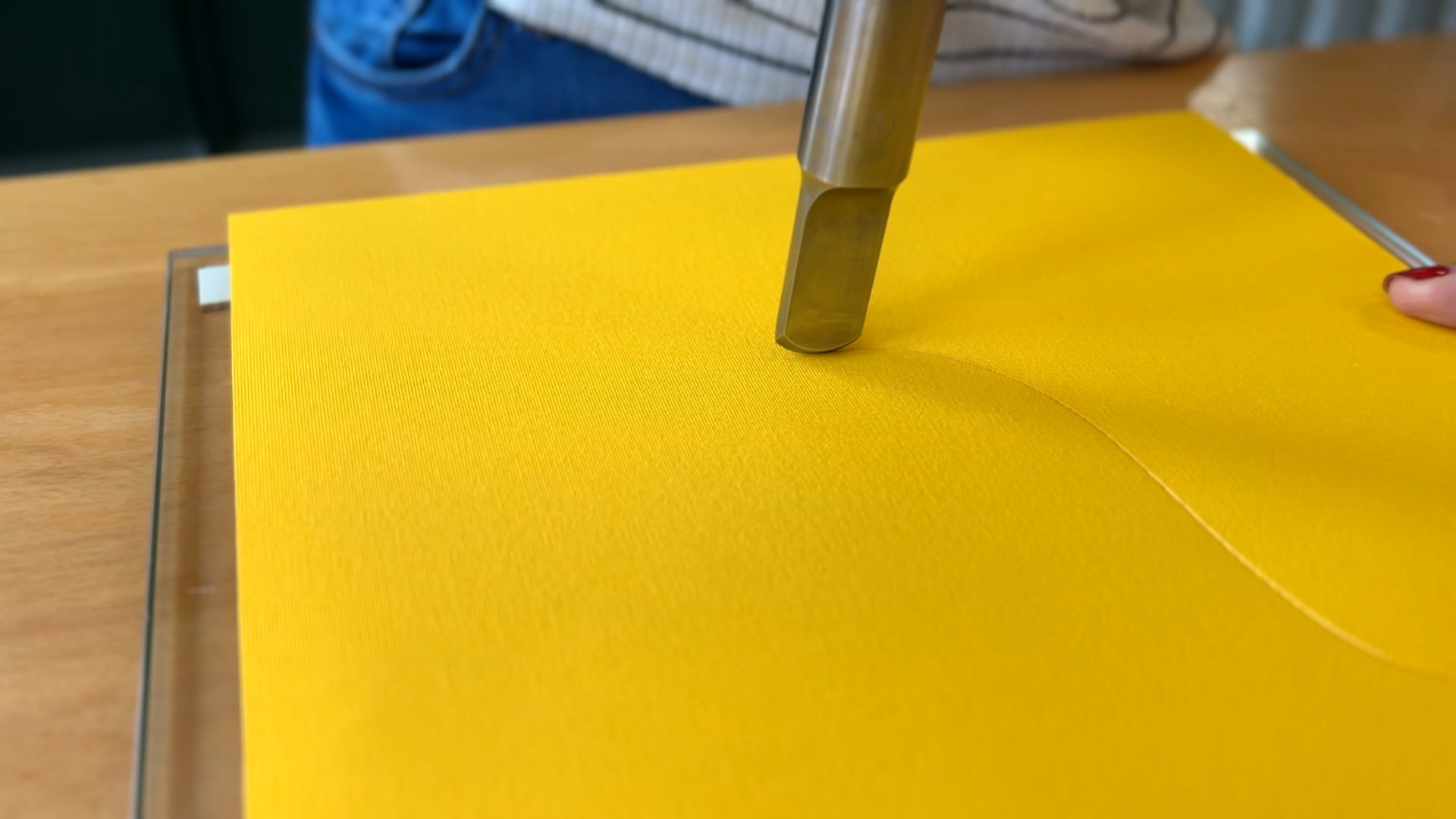

  • Ultrasonic shape cutting on different synthetic textiles* or plastic

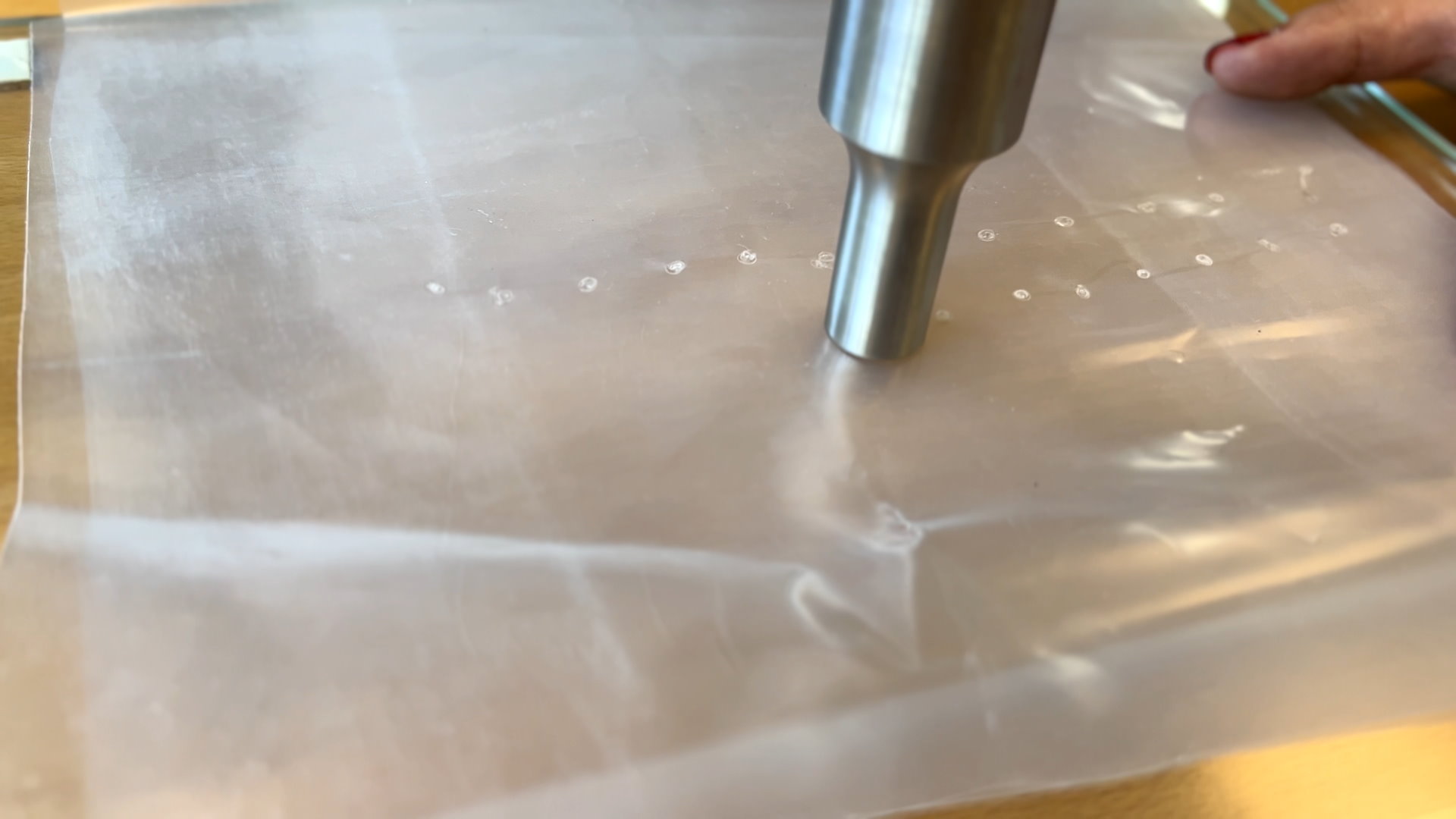

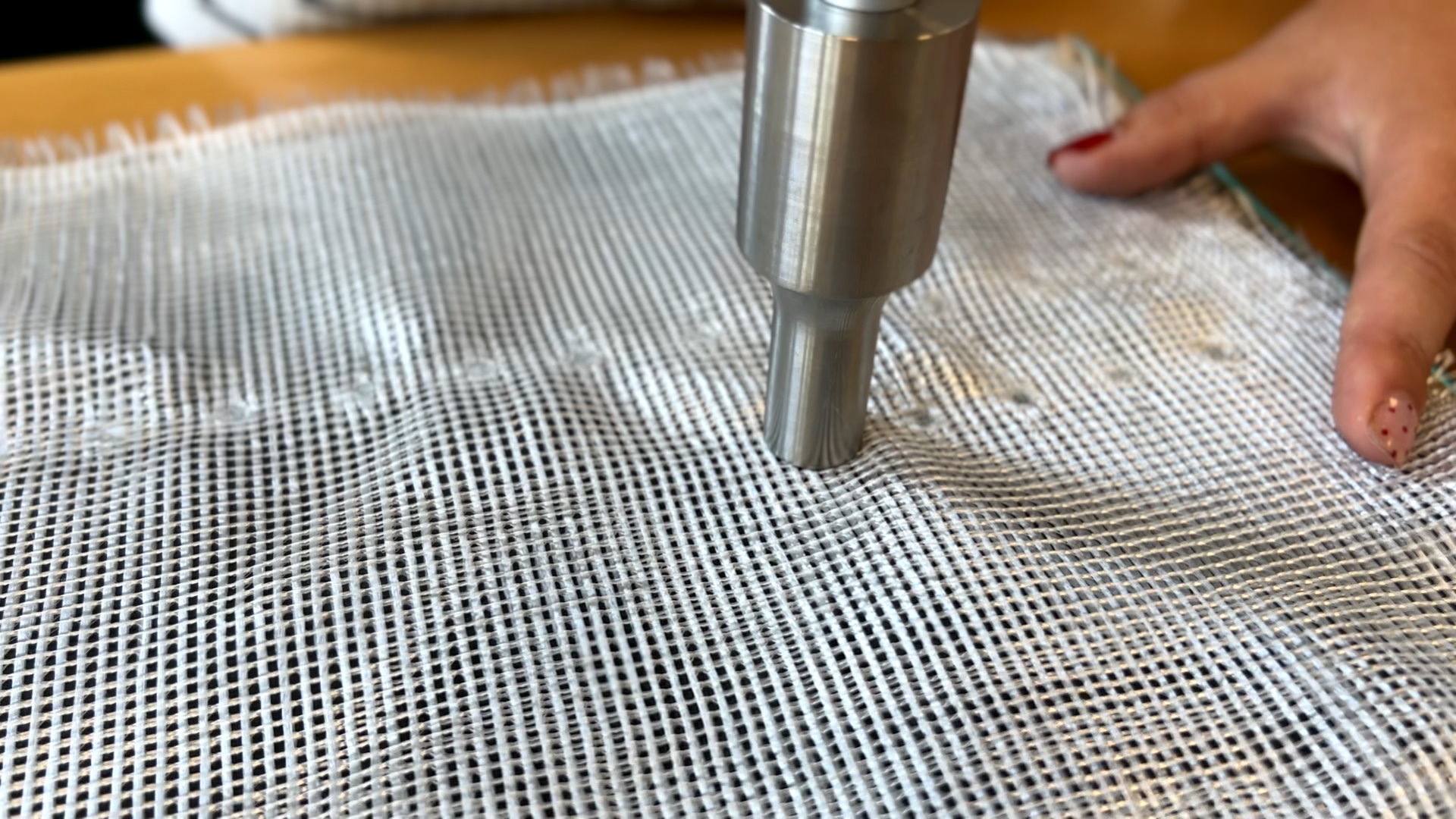

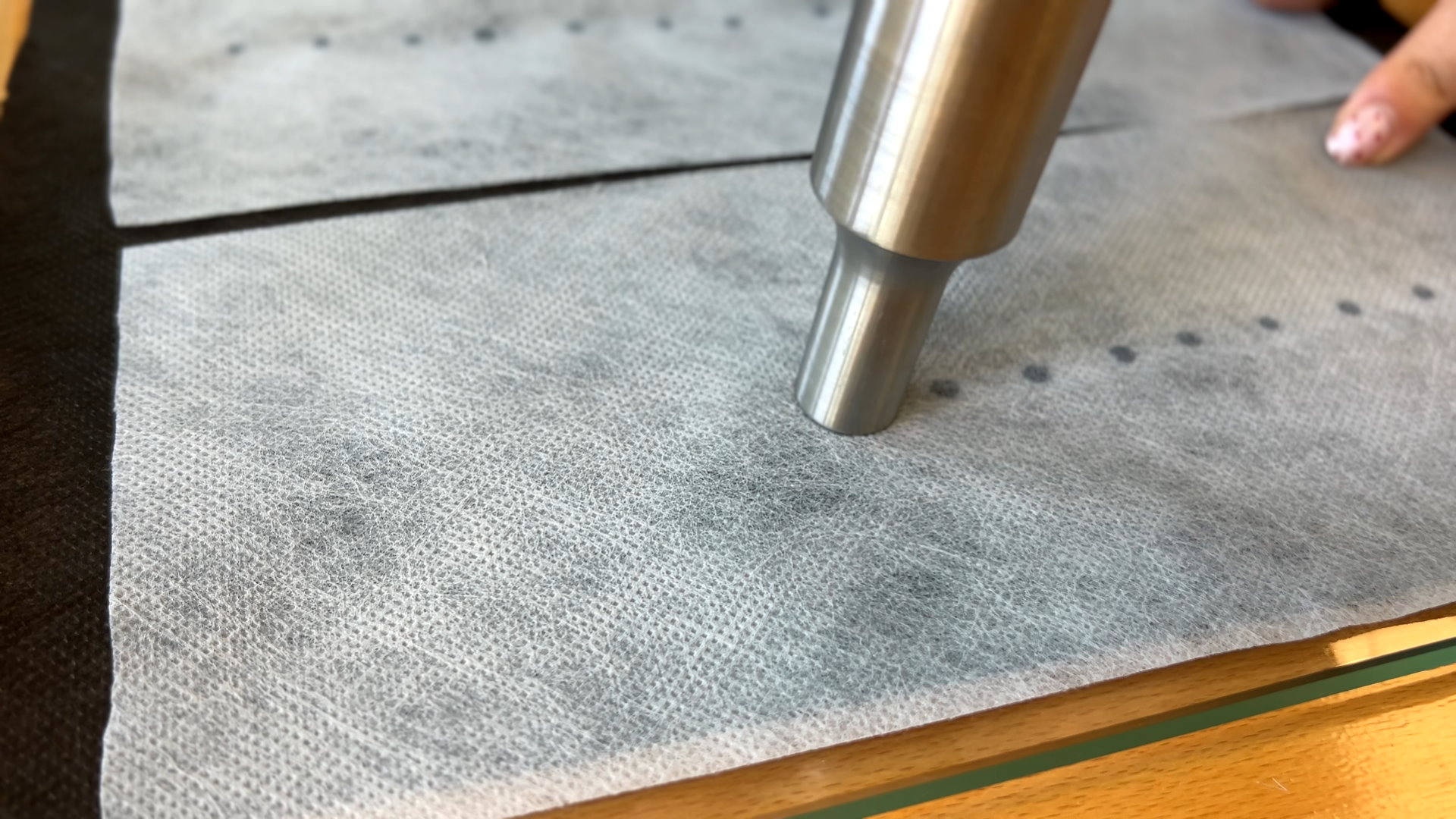

  • Ultrasonic spot welding on plastics, ribbons, straps…

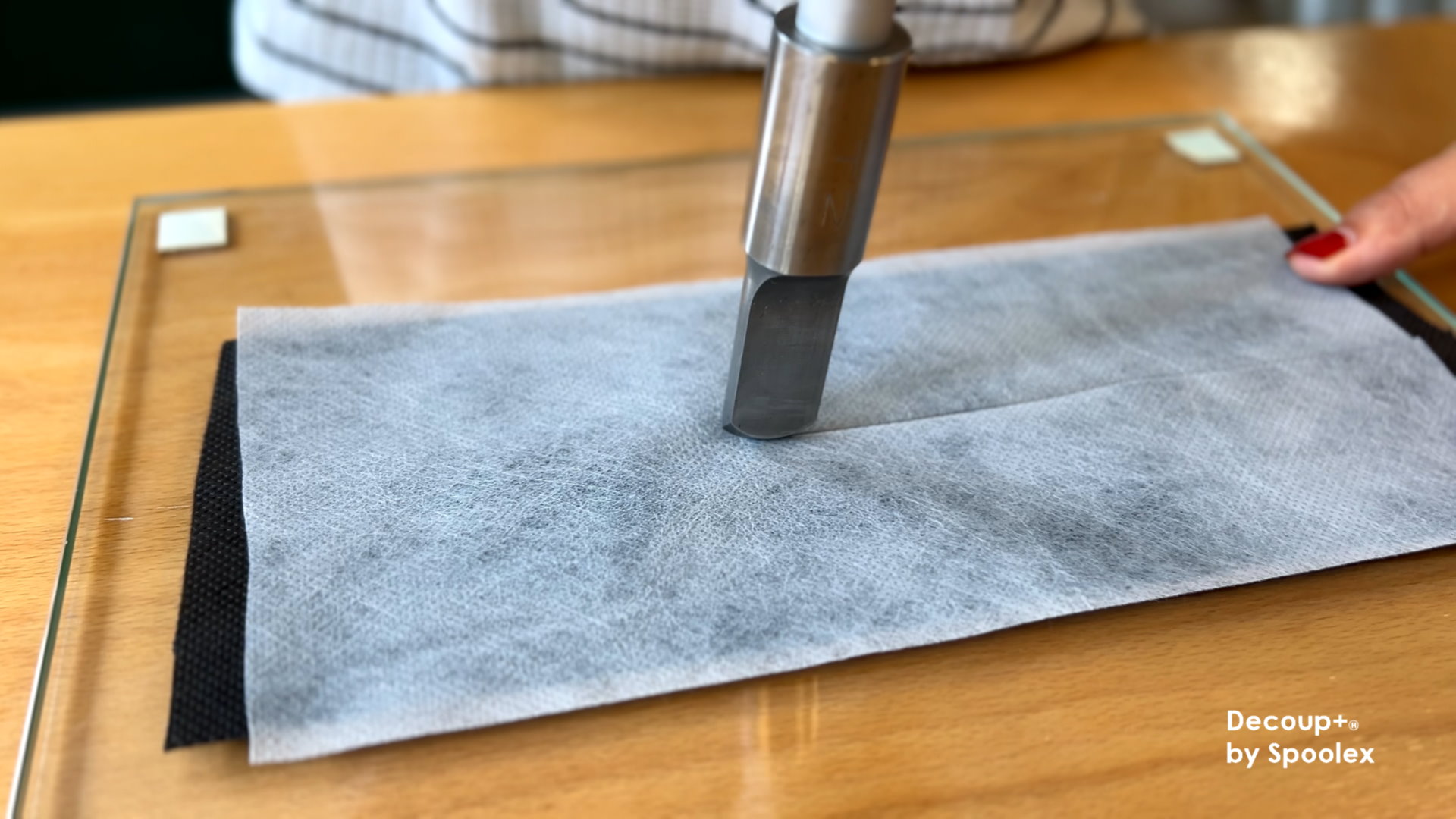

  • Continuous sealing on nonwovens, synthetic textiles…

Quick and easy, the ultrasonic technology used for our Pistol / Gun offers numerous advantages. On the one hand, ultrasonic cutting allows to realize in one single pass a clean cut (without fraying, burning, nor overthickness). As a result, the edges are closed and the product can be immediately used. On the other hand, ultrasonic spot welding allows to obtain a clean and strong welding (without glue or staple) to ease final make-up operations. Whatever is the use, be sure to obtain clean, resistant and consistent results!

Example of ultrasonic Pistol / ultrasonic Gun applications:

User friendly thanks to its ergonomic handle and its light weight, our P device is adapted to manual operations in applicatons such as : sun protection, bedding, industry, clothing, ribbons, home furnishing, etc.

*Ultrasonic technology can be used only on synthetic textiles (with a minimum of synthetic fibers), thermoplastics or any thermo-fusible product. To be sure, don’t hesitate to contact us for ultrasonic cutting or welding trials

Description

Flexible solution to perform handheld cutting or sealing operations :

  • Easy change from cutting to welding by a simple sonotrode / horn replacement
  • Quick and easy to use even in hard-to-reach area
Technical information
  • Power: 300 W
  • Supply: 220 V
  • Weight: 1.2 kg
  • Standard Ø for spot welding: 18 mm
  • Standard cutting angles: 70° or 90°
  • Ultrasonic generator: 300 W (with power and time delays adjustments)
  • Guarantee: 1 year parts and labor
  • Ultrasonic technology: ultrasonic direct cutting and ultrasonic spot welding
Videos
Spare parts and accessories

For your spare parts or accessories orders, feel free to contact our spare parts assistants directly by phone +33 4 77 29 36 70 or e-mail : sav-decoup@spoolex.com

  • Spare parts: use the parts drawing provided with your Pistol ultrasonic cutting device
  • Accessories available:
    • Glass or steel plate
    • 10 m ultasonic cable (maximum)

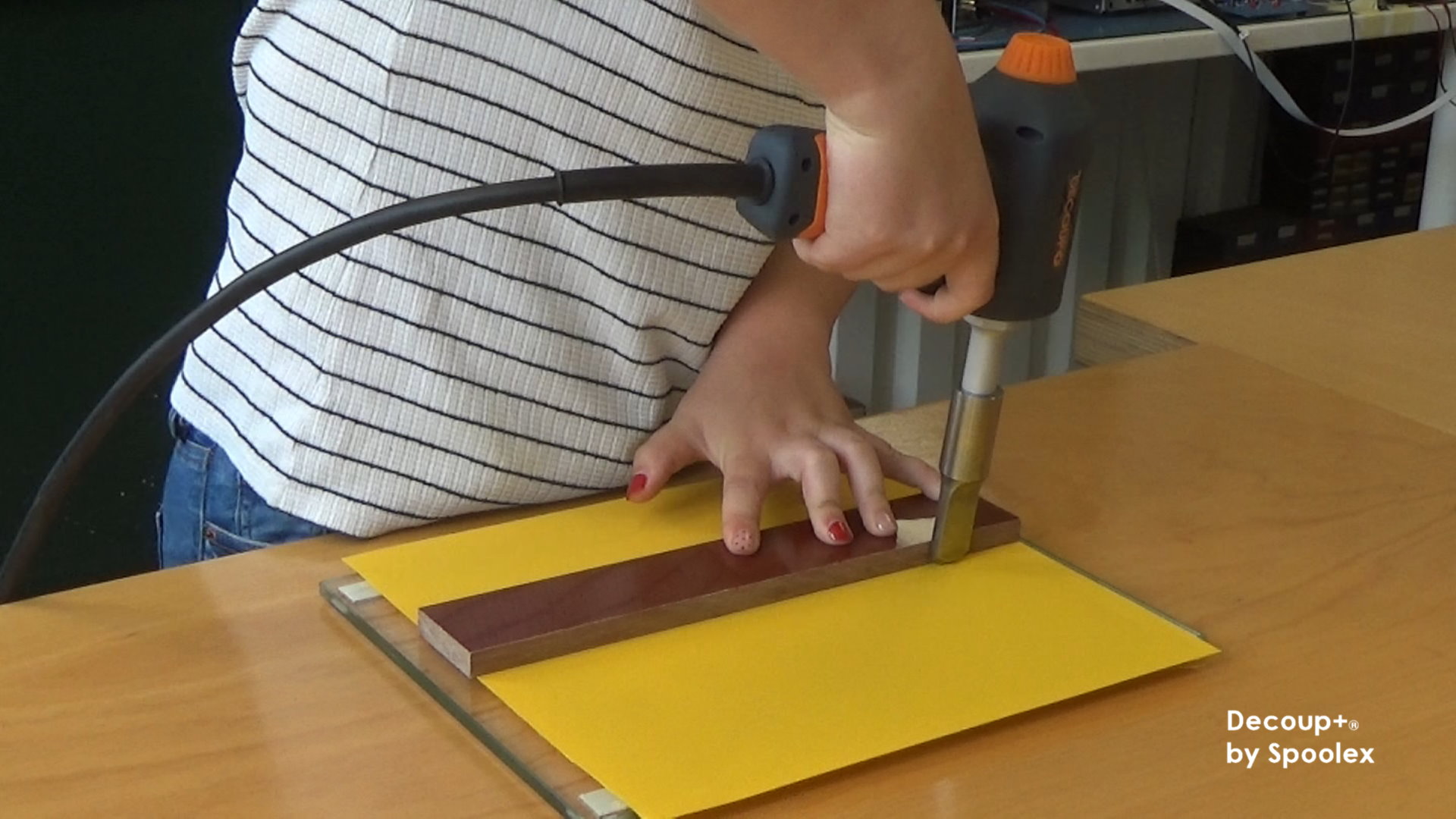

    • Steel rule for straight cutting
    • Other cutting angles on request
    • Inertia-reel-assisted to let the device hanging when not used annd so, to ease handling operations for your operators
