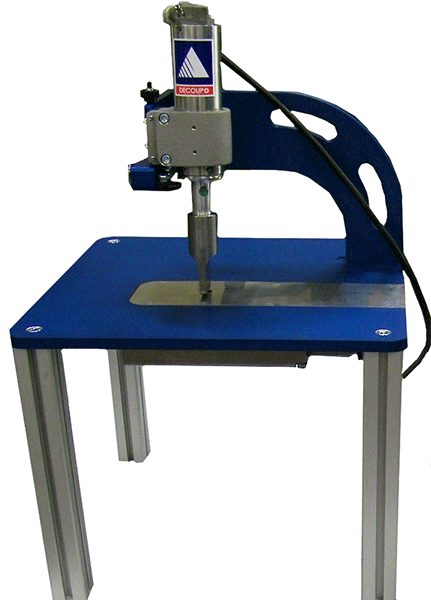

Ultrasonic sewing machine

Take advantages of ultrasonic technology for your “stitching” operations

Easy to use and affordable, this independent and ergonomic working station enables “stitching” operations. Our ultrasonic sewing machine is well adapted to small and medium size series. It performs quick, easy, clean and resistant weldings, without any additional material. Then, this version with motorized wheel enables guiding the fabrics. As a result, your equipment becomes a real sewing machine. Above all, it allows working forward and reverse direction, to match operators’ uses and working conditions. Finally, this sewing machine is an hygienic and ecofriendly device. Using ultrasonic sewing, avoid the use of metallic staples, threads, yarns or rivets. It also prevent holes. We also propose various wheel patterns. Thus, you can get different types of results, but always with same quality, resistance and softness!

Ultrasonic sewing machine applications:

Our ultrasonic welding machine is well adapted for make-up operations on various applications such as: sun protection or any other operations on your technical textiles or nonwovens. Finally, this versatile and autonomous equipment will enable you to perform various sealing patterns but always with the same quality, resistance and softness.

*Ultrasonic technology can be used only on synthetic textiles (with a minimum of synthetic fibers), thermoplastics or any thermo-fusible product. To be sure, don’t hesitate to contact us for ultrasonic cutting or welding trials.

Description

Our ultrasonic welding station is:

  • flexible : perform various sealing depending on tools
  • easy to use:
    • welding patterns change thanks to easy interchangeable tools
    • control foot pedal for an easy use

Version without wheel motorisation is also available…

Technical information
  • Power: 300W
  • Supply: 220 V
  • Welding wheel: different patterns on request
  • Generator included: 300W (with power and time delays adjustments)
  • Guarantee : 1 year parts and labor
  • Ultrasonic technology: Continuous ultrasonic welding process
Videos
Spare parts and accessories

For your spare parts or accessories orders, feel free to contact our spare parts assistants directly by phone +33 4 77 29 36 70 or e-mail : sav-decoup@spoolex.com

  • Spare parts: use the parts drawing provided with your Ultrasonic sewing machine
  • Accessories available:
    • Can be mounted onto feet or integration in existing table
    • Solution available for machine mounting
    • Welding patterns on request
